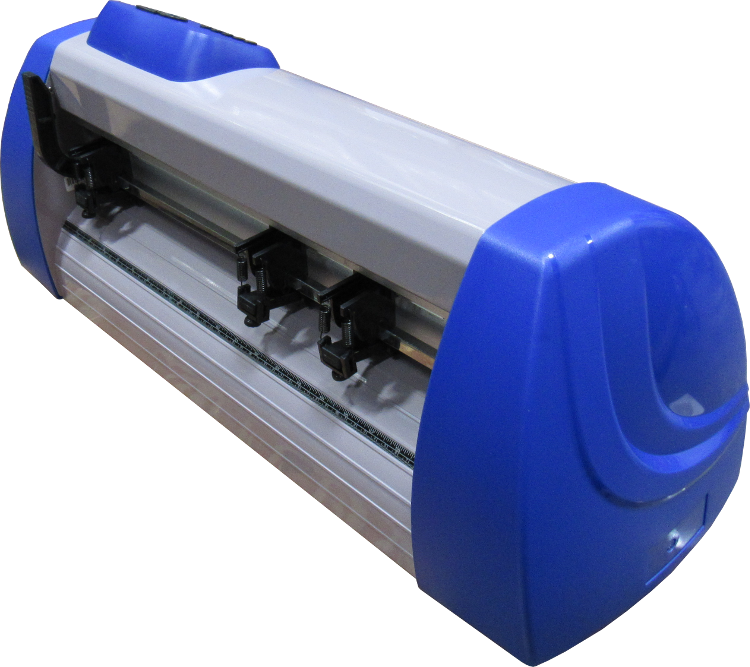

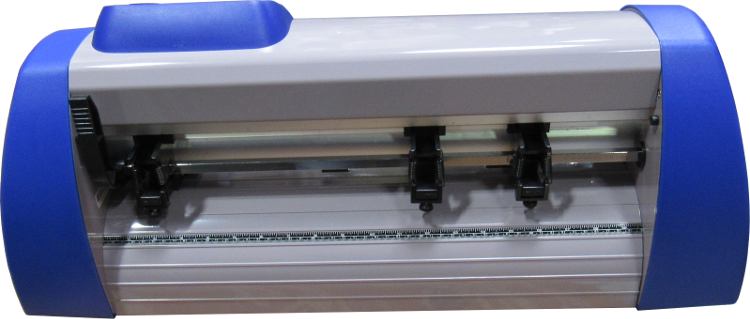

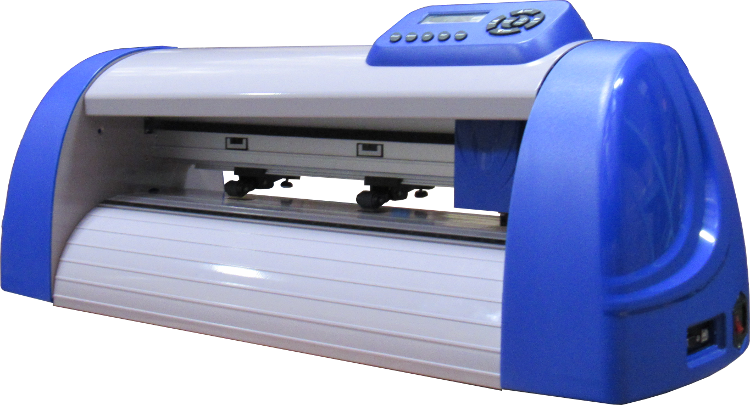

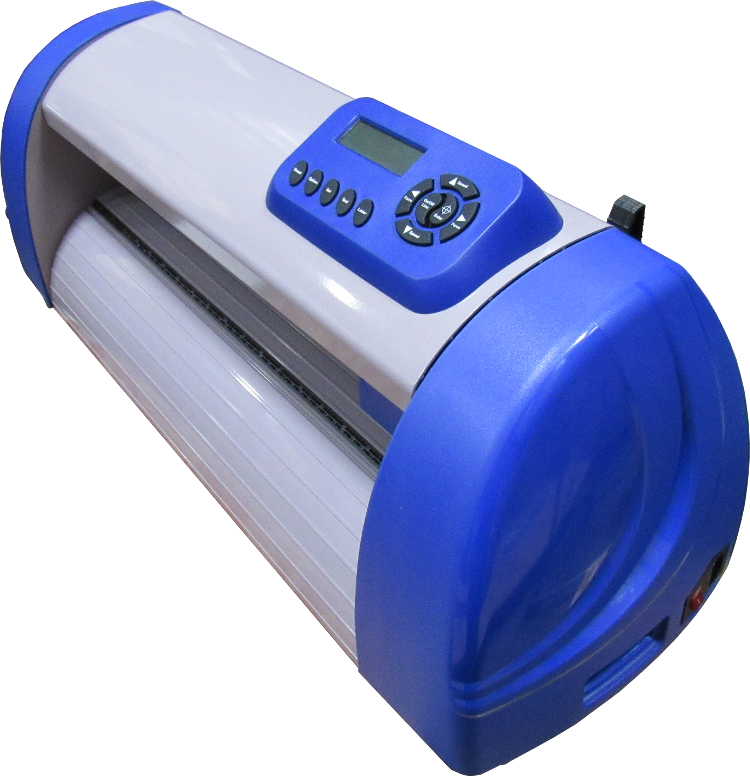

Saga P 490 II is a small servo motor vinyl cutter able to handle heavy reflective marine grade vinyl.

This vinyl cutter/potter will cut up to 15.7 inch wide material with overall width of 19.3 inches

THIS PRODUCT INCLUDES A 5 YEAR WARRANTY

  • $1135.00
Qty:
  • SKU
    s-p450II

Motor: Servo
Maximum Cutting Width (mm): 400
Maximum Media Width (mm): 490
Measurements (cm): 73 x 33 x 32
Gross Weight (kg): 9
Net Weight (kg): 10
Feed System: Direct Pull
Construction: Aluminum Alloy, ABS End Caps
Maximum Drawing Speed (mm/s): 960
Maximum Cutting Speed (mm/s): 960
Control System: Servo Motor
Power (w): 25
Tracking: 5
Maximum Force (g): 750
Maximum Force Increment (g/step): 3
Mechanical Resolution (mm/pulse): .01254
Connections: RS-232, USB
Power Supply: AC 110V-240V / 50-60HZ 6A
Maximum Noise (dB (A)): 35
Ambient Temperature Range C: 5 - 35
Command Language: HPGL
