Geo Knight 16 20 auto open clamshell heat press

Geo Knight DK20 16" x 20" Clamshell Heat Press Auto Open

In stock (1000 items available)
Not rated yet

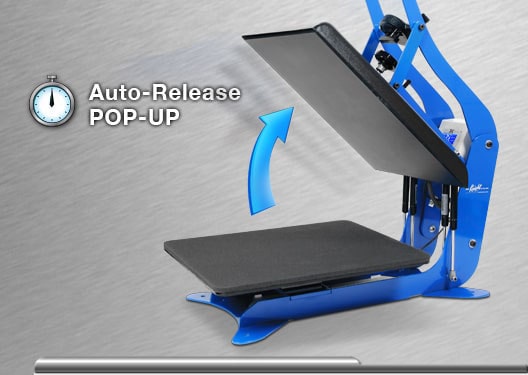

The Auto-Release upgrade also features the "HOVER" feature. This means when the handle is lowered without fully clamping the machine, the press will hover over the work, usually needed for curing purposes. At the end of the time cycle the press releases automatically as usual.

The DK20 16" x 20" is Geo Knight's largest clamshell heat press that opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing enhanced access compared to other clamshell heat presses.

Download PDF Manual

  • $1650.00
Qty:
  • Weight
    158 lbs
  • SKU
    DK20auto
  • dk20man.pdf 920.2 kB
    DK 20 manual download click here





The DK20 16" x 20" is Geo Knight's largest clamshell heat press that opens for full access to the lower bottom table. It is important to note that the back of the heat platen raises above and away from the bottom table, providing enhanced access compared to other clamshell heat presses. The frame support allows operators to slide shirts over the table with complete drape space around and underneath the loading area. Interchangeable bottom tables for smaller pressing areas are available. This press is ideal for environments with space limitations.



FEATURES

  • Fully digital temperature control (32°-600°F range)
  • Automatic digital timer & dual pre-press timer
  • Digital pressure bar graph
  • Super-portable light machine weight--103 lbs!
  • Extreme high pressure capability
  • Hardened High-strength pivot points
  • Solid steel framework
  • SuperCoil-Microwinding™ heater technology
  • Self lifting gas-spring & wide opening
  • Temperature readout accuracy of ±2°F -- Can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Non-stick-coated 3/4" thick heat platen
  • Lifetime warranty on heat platen
  • 3-year warranty on the control panel
  • 1-year warranty on entire press

SPECIFICATIONS

  • Weight: 103 lbs
  • Electrical: 1800W / 15A / 110V
  • Dimensions: 36"L x 17"W x 16"H
